Enclosed Waterjet

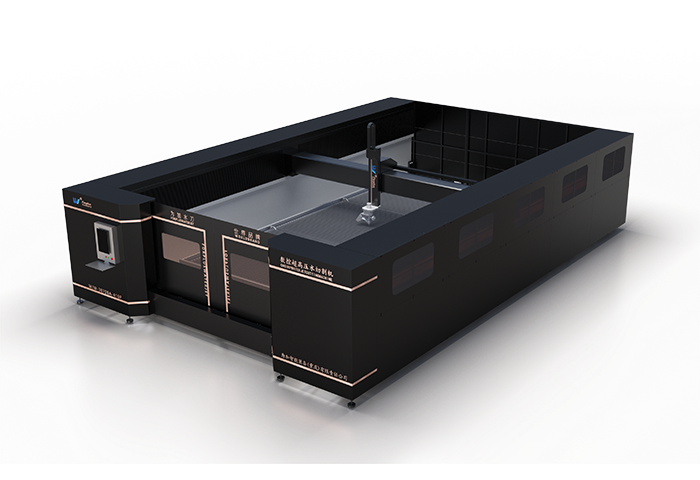

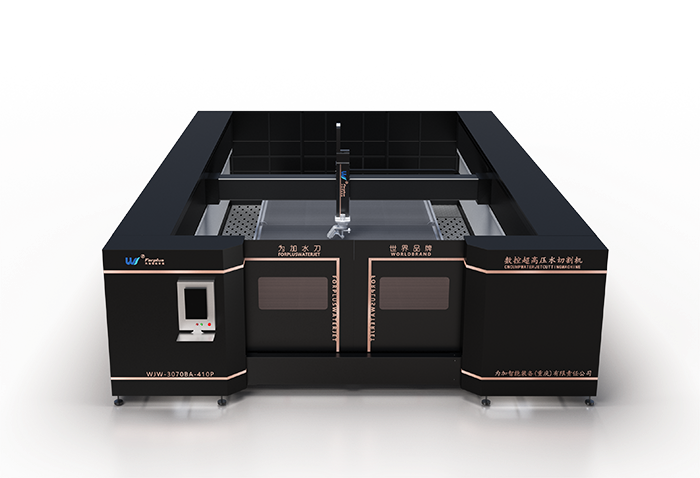

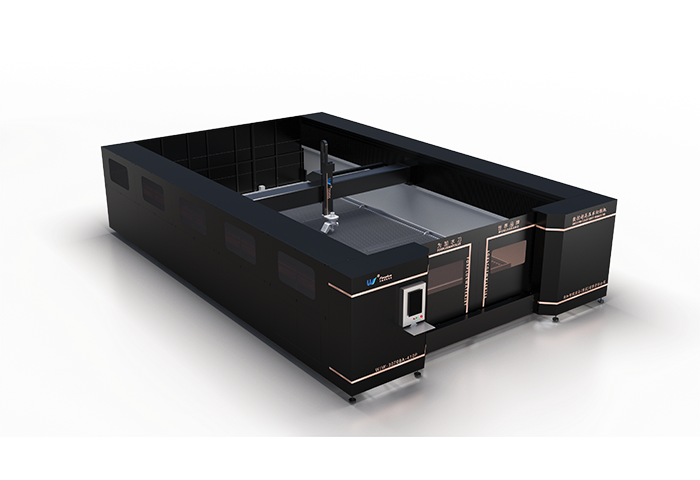

Enclosed Waterjet Machine

With enclosed design, powerful high pressure pump and all sizes of table, Forplus enclosed waterjet cutting machine provides you the desired cutting envelope, cut speed and precision.It is the ideal solution to heavy industry and aerospace, where large size parts are cut with high EHS requirements.

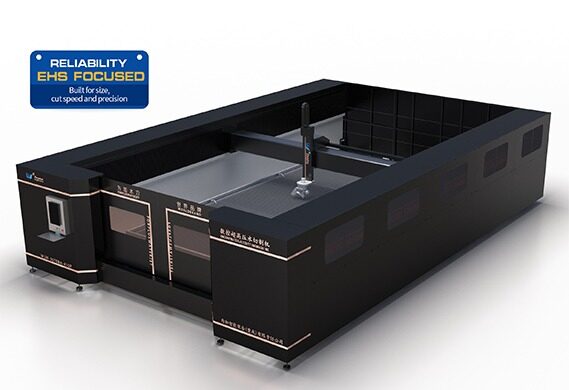

Meet The Demands of Large Parts and Massive Production

Special coatings on water tank, XY beams and enclosed structures, unparallel wear resistance and corrosion resistance in the industry.

Key Features

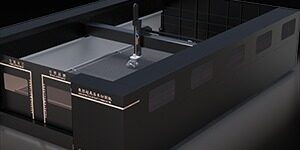

Full Enclosed Gantry Structure

Completely isolates the water and abrasive splash from outside of the system, helping improve the EHS standard in your factory. Heat-treated steel components to eliminating stress, providing long service life.

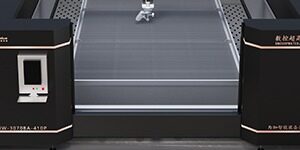

Safety Door

Highly efficient for loading and unloading parts, especially large/heavy ones.

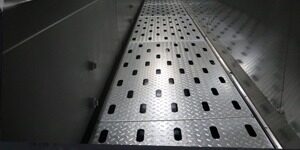

Access Walkway – Optional

Specifically designed for overflow water discharge and maintenance access, keeping your waterjet machine surrounding dry and safe.

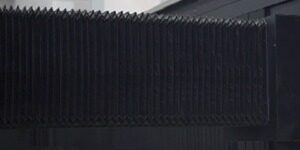

Durable Transmission System

Water/abrasive proof from dual protections on transmission system.

5-Axis Cutting Head Optional

Waterjet cutting head is one of key sub-systems of waterjet machine, as it convert high pressure water flow to high speed cutting jet with consistency. Cutting head has a lot more to do with the cutting performance(precision, cut speed and up-time).

Controlled axes: (Centering AC 5-axis) 5-axis linkage (AC).
Control accuracy: A, B = 5 arc seconds; X, Y = 0.02.
Control angle: A = ±75°, C = ±360°.
Positioning accuracy: X, Y = 0.025; Re-positioning accuracy: X, Y = 0.025

Configured with Forplus's Full Range of High-Pressure Pumps

Configured with Different Waterjet Accessories

Automatic Continuous Abrasive Metering & Feeding System

The automatic continuous abrasive garnet metering feeding system consists of standard continuous garnet feeding and quantitative garnet feeding tanks, achieving continuous online garnet feeding work and efficiently and accurately completing cutting operations.

Abrasive and Water Separation System

To separate abrasive from the water during cutting, through gravity settling, centrifugal effect and filtration etc.

High Precision Accessory Equipment

The position of the cutting head can be monitored in real time by a magnetic scale to correct cutting errors; or a high-definition camera or laser scanner can be used to automatically identify the contour of the workpiece and adjust the cutting path.

Applications

Enclosed Waterjet Cutting Machines are good for massive production of various of materials like alloy, stainless steel, stone/tile, composite, glass etc. with precision, while giving you extra EHS benefits.
