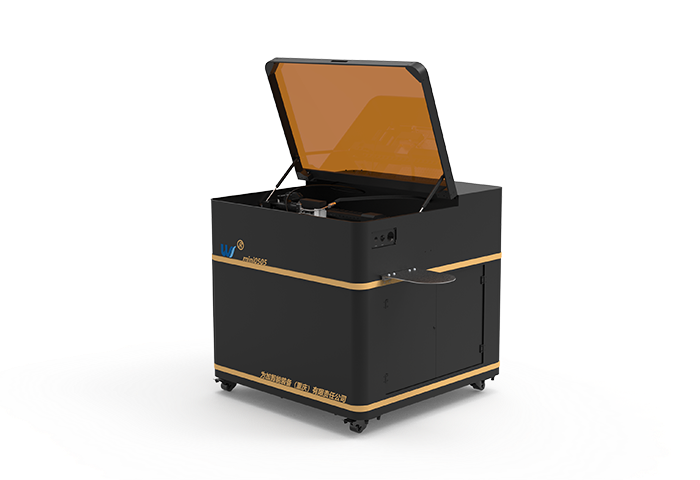

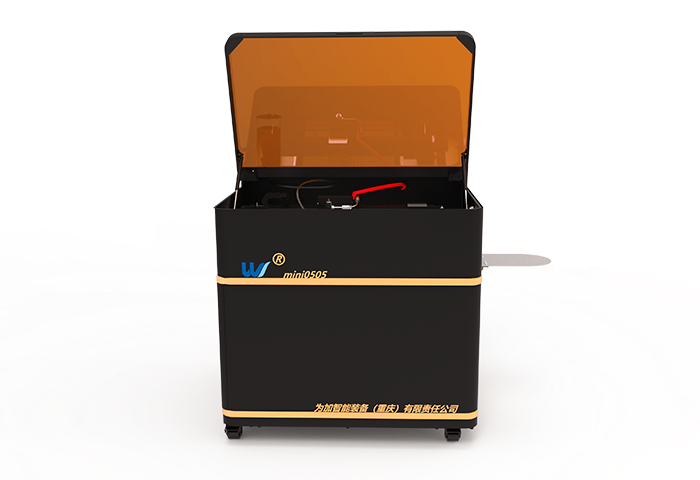

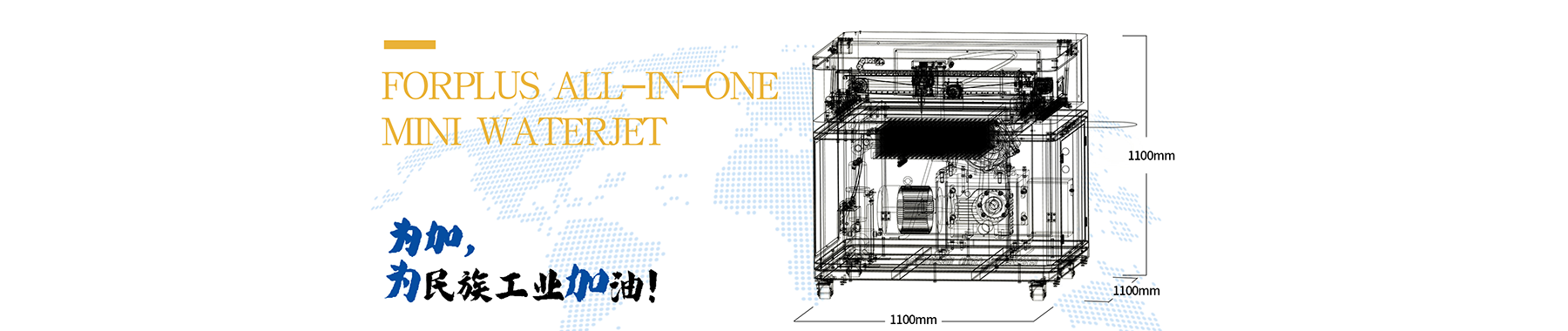

The ForPlus Mini Waterjet is a mobile and all-in-one waterjet cutting machine.It could be your entry level of high pressure waterjet cutting machines, also giving you flexibility to cut in limited workspace or relocate the machine to where is needed.with conventional 220V/380V AC power to perform rapid waterjet cutting at pressures ranging from 30000psi-55000psi (200-350MPa).
No installation required, easy to debug.
Configured with waterjet professional CNC software;

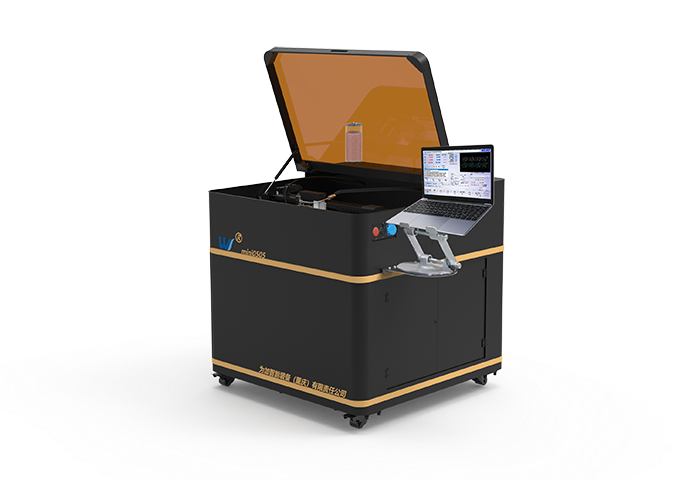

Any laptop with Window 10+ operating system can be used as the control system with an encryption dongle.
Operating noise ≤ 60dB, suitable for office, schools and laboratory environments.
220V/380V50HZ,The minimum power is 4.2KW.

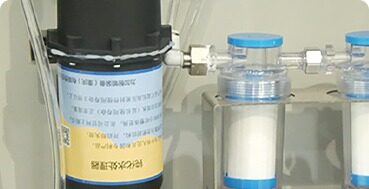

Configure an embedded passivation water treatment system without the need for additional water purification equipment.

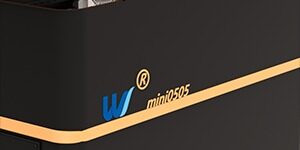

Unique in waterjet industry – with the automotive chassis grade coatings on machine surfaces, providing excellent anti-corrosion, rust proof and wear-resistant performance, validated by 2000+ hours of salt spray test.

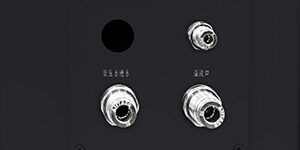

All sub-systems – high pressure pump, cutting platform, garnet feeding system, water treatment system, control unit etc. are integrated in one mobile system.

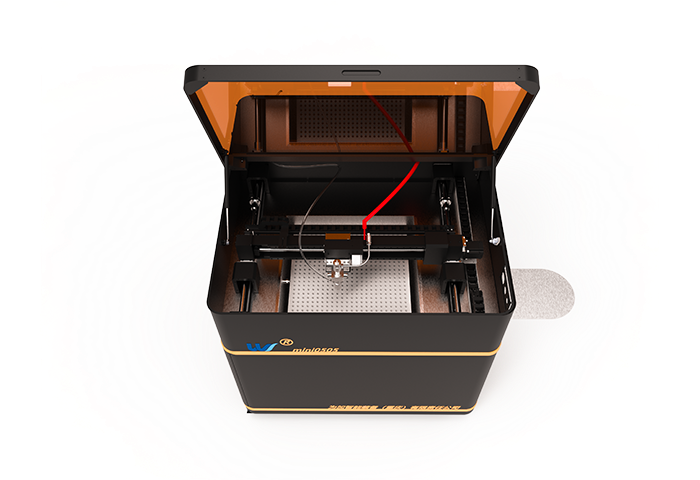

Adopting a gantry structure, the cutting accuracy is high, with a cutting accuracy of ± 0.1mm.
Cutting paths.
All equipment accessories are made of high-quality components from top domestic and foreign brands.
The All-In-One MINI waterjet cutting machine is good for material testing, teaching, material research and prototyping.
To be the global top brand waterjet company, with the craftmanship of scientific, rigorous and lean.
